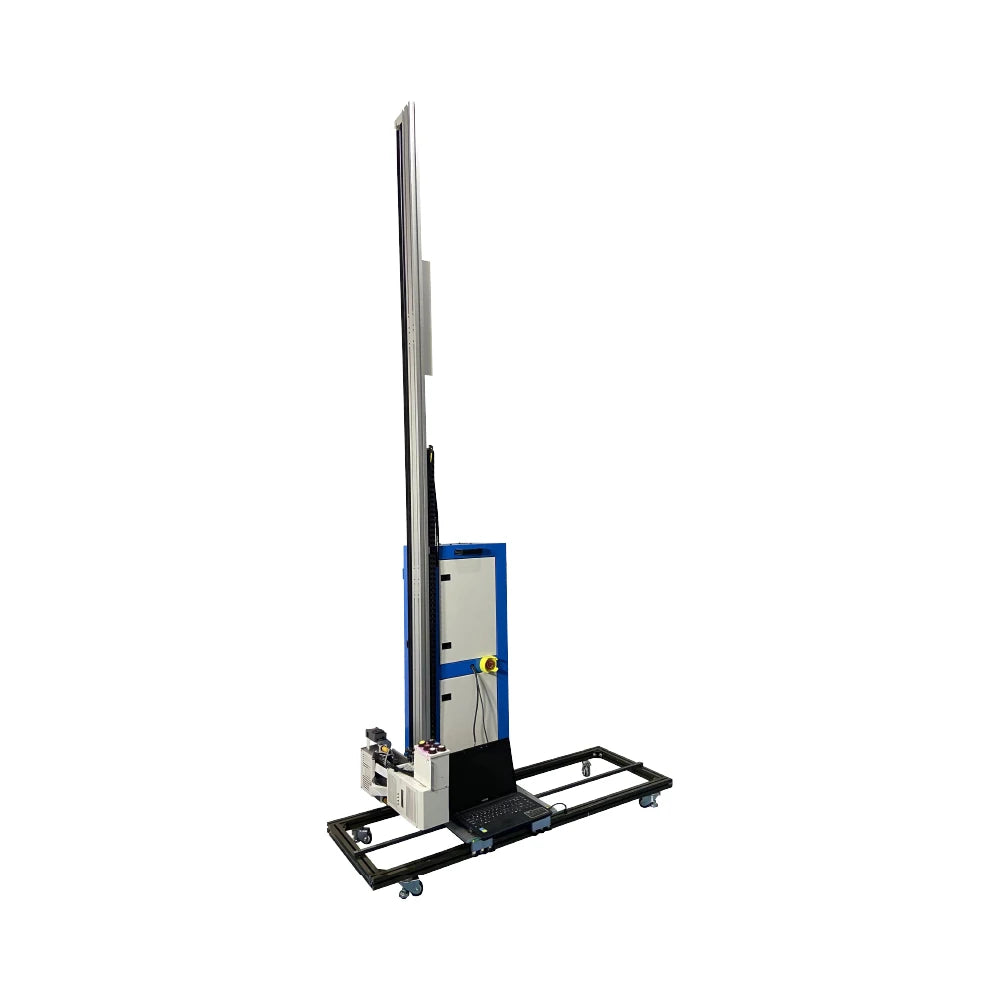

Ceramic Wall, Tile & Floor UV Printing Machine

Equipped with high-accuracy laser positioning, intelligent ink management, and multi-surface compatibility, this machine is built to impress whether you're printing bold logos on lobby floors or murals on concrete walls.

Key Features & Benefits

Dual Surface Capability
Print directly on vertical walls and flat floors with one integrated, portable system.

High-Precision Printing
Achieve detailed designs with adjustable DPI settings up to 2880 dpi. Clean lines, deep color saturation, and crisp resolution every time.

Flexible Ink System
CMYK + White UV ink system for vivid designs with depth, including semi-transparent materials and dark surfaces.

Automatic Laser Positioning
Built-in laser crosshair ensures your design starts exactly where you want it. No misalignment, no mistakes.

Smart Surface Detection
Dual ultrasonic sensors detect surface curves, concaves, or unevenness and adjust printing height automatically.

Power-Off Protection
Built-in memory continues your print exactly where it left off after a power interruption.

Fast Output Speeds
Print up to 15 square meters per hour, making it ideal for commercial projects and batch jobs.

Compact & Foldable
Weighs only 55kg and folds down to fit in an SUV. Easy transport for on-site printing jobs.

Low Ink Cost
One full ink set prints 150–200 sqm, averaging just $0.63 per sqm saving on long-term production.

What’s in the Box

1 x Wall & Floor UV Printer (Model BK-GP400)

2 x Ultrasonic Surface Sensors

1 x Set of 5 UV Inks (500ml each)

1 x Laser Positioning Module

Disassembly Tools & Print Rail Set

Operation Manual & Software

Note: Control computer and UPS power backup not included. Express shipping is sea freight to port (customer handles customs & local port charges).

Technical Specifications

Print Size: Up to 2.45m width, unlimited length

Nozzle Type: DX10 or TX800 dual-head

Ink Type: UV CMYK+W

Print Speed: 6 to 15 sqm/hr

Accuracy: 360 to 2880 dpi

Voltage: 220V

Machine Weight: 55kg

Folding Size: 1.1m x 0.5m x 0.6m

File Formats: jpg, png, tif, psd

Features: Laser calibration, nozzle check, auto color correction, image splicing

Ideal For

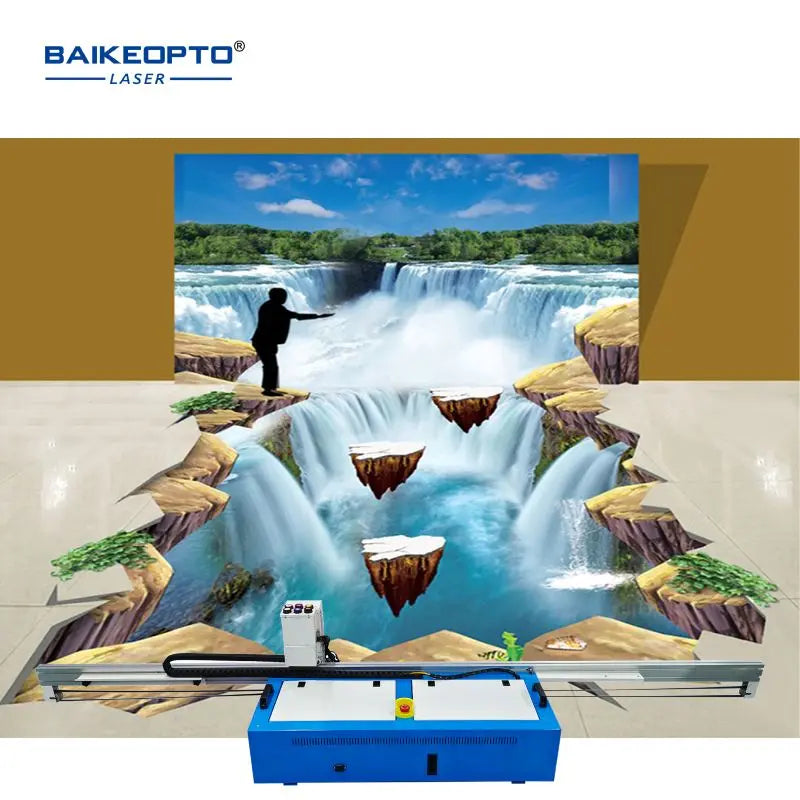

Ceramic floor tiles

Cement and concrete walls

Red/green brick surfaces

Glass panels

Outdoor advertising walls

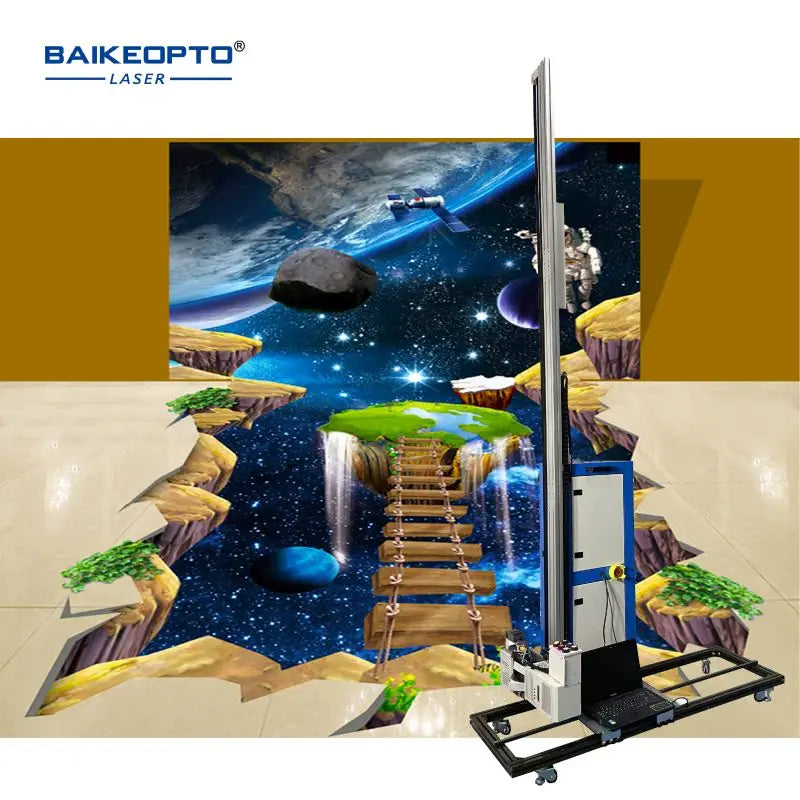

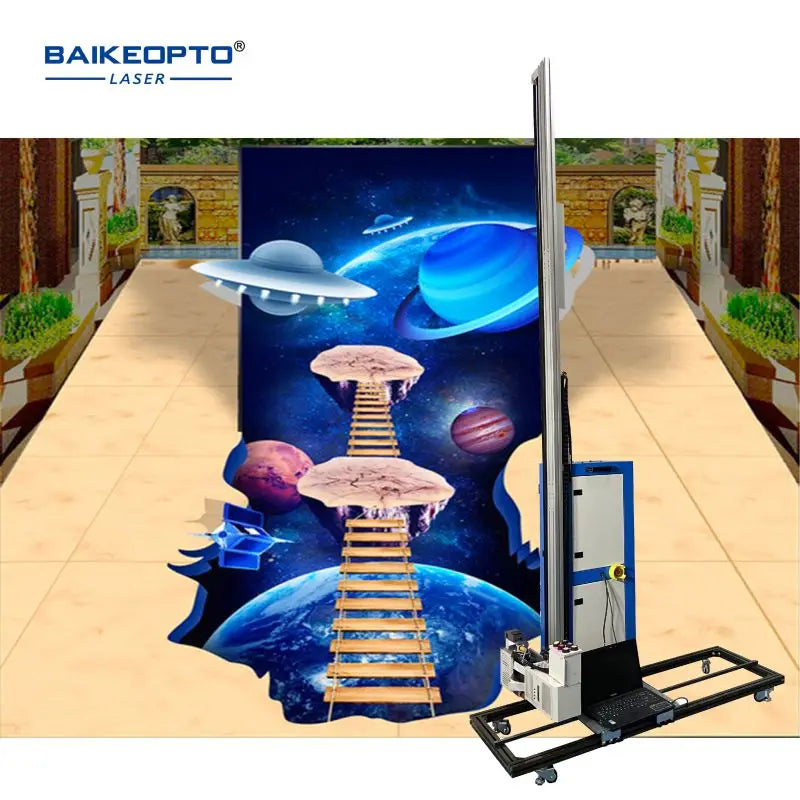

Interior décor murals

Restaurant or retail branding

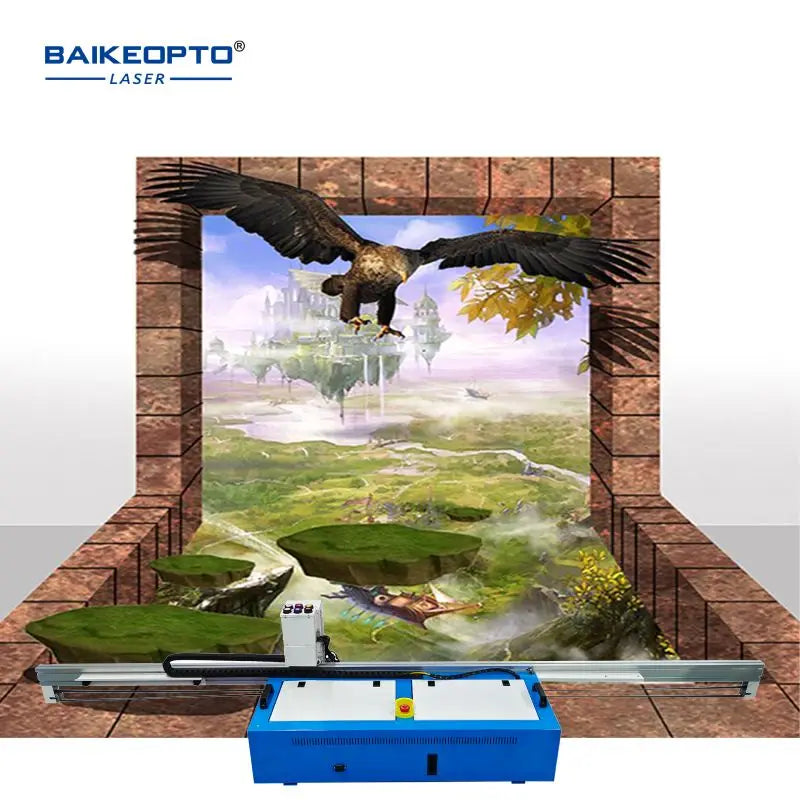

3D simulated art installations
