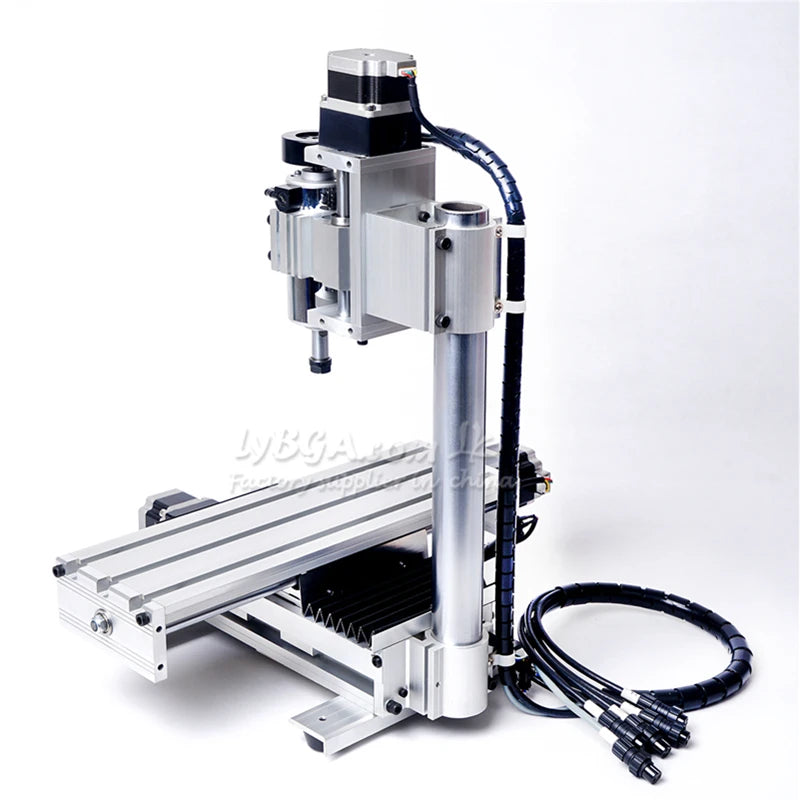

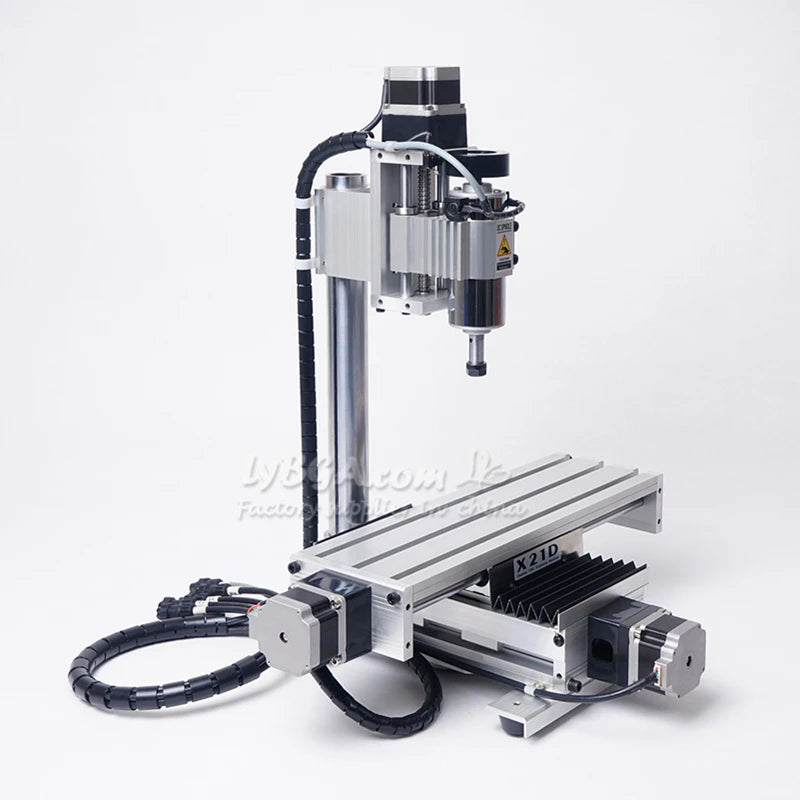

LY 3-Axis & 4-Axis CNC Milling Machine

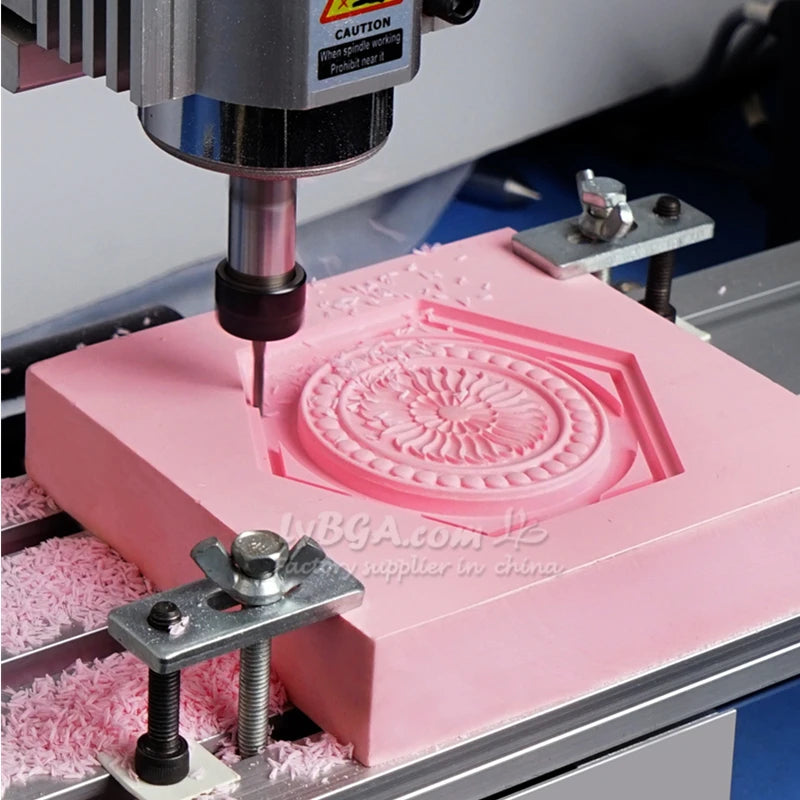

This LY CNC Milling and Cutting Machine delivers smooth, professional results right from your workshop or home studio. Designed for precision and built to last, this machine is your new go-to for creative and industrial projects.

Key Features & Benefits

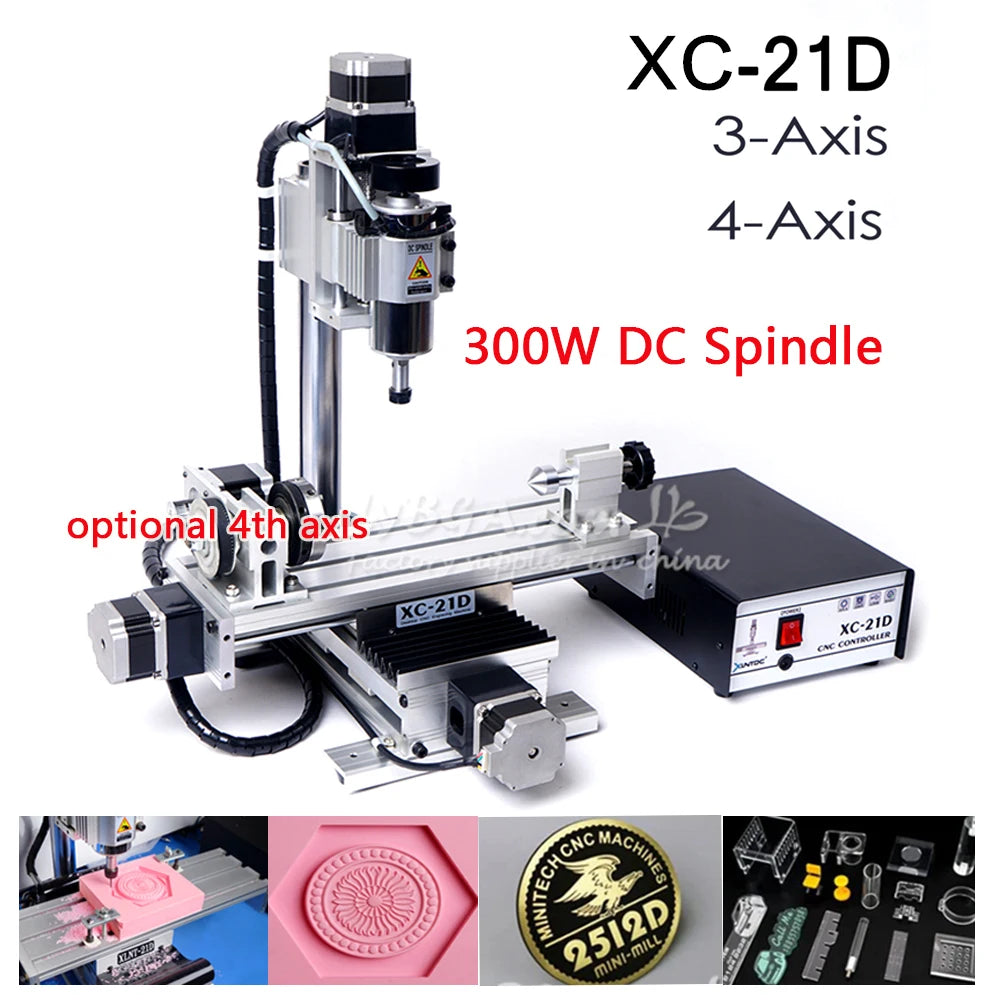

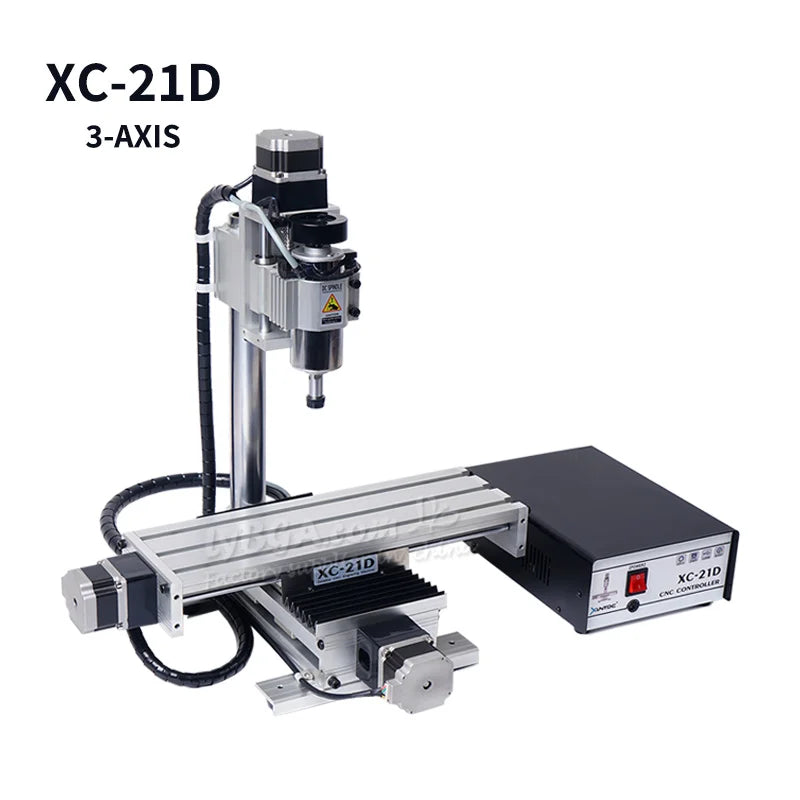

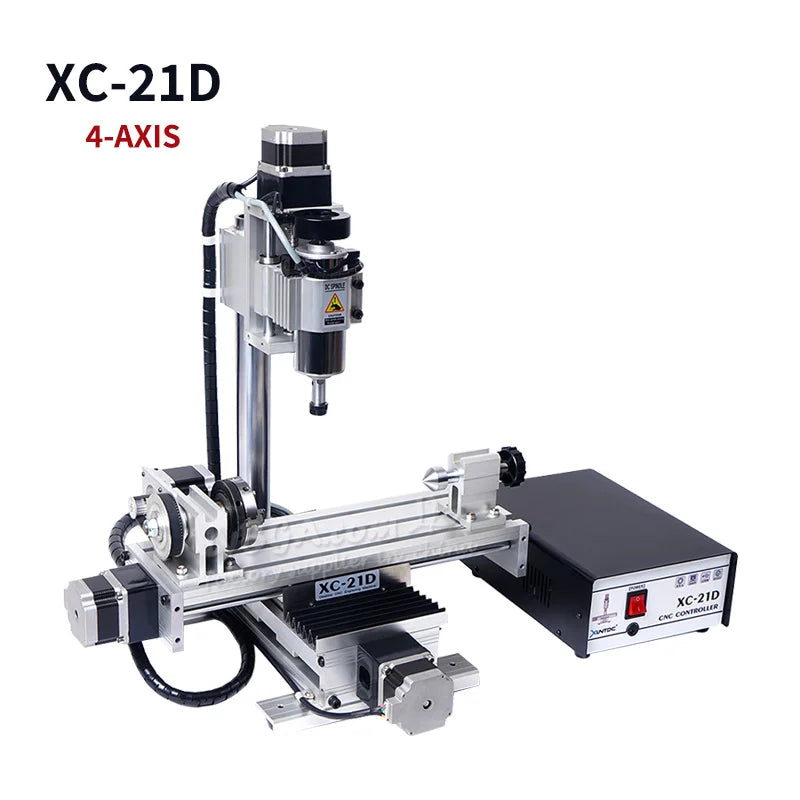

Choose Your Axis
Available in 3-axis or 4-axis configurations for flat or rotational engraving.

Wide Material Compatibility
Perfect for wood, plastic, acrylic, resin, and non-ferrous metals like copper or aluminum.

Quiet 300W DC Spindle
High-speed motor with adjustable RPM (3000 to 11000) and low noise output.

Precision Ball Screw Design
Offers accurate, vibration-free operation with a repeatability of 0.05mm.

Stable & Durable Build
Made from 6061-T6 aircraft-grade extruded aluminum alloy for long-term stability.

User-Friendly Software
Works with MACH3, ArtCAM, Type3, EMC2, CopperCAM, and other G-code-friendly programs.

Tool Auto-Check & USB Port
Simple connectivity and smart automation for fast setup and control.

Flexible Power Support
Runs on 110V or 220V AC, ideal for standard workshop or studio environments.

What’s in the Box

1 × LY CNC Router (Choose 3-axis or 4-axis)

1 × USB Controller

1 × Power Supply

1 × Spindle Motor

1 × ER11 Collet (3.175mm)

Cables, Tools, and Setup Manual

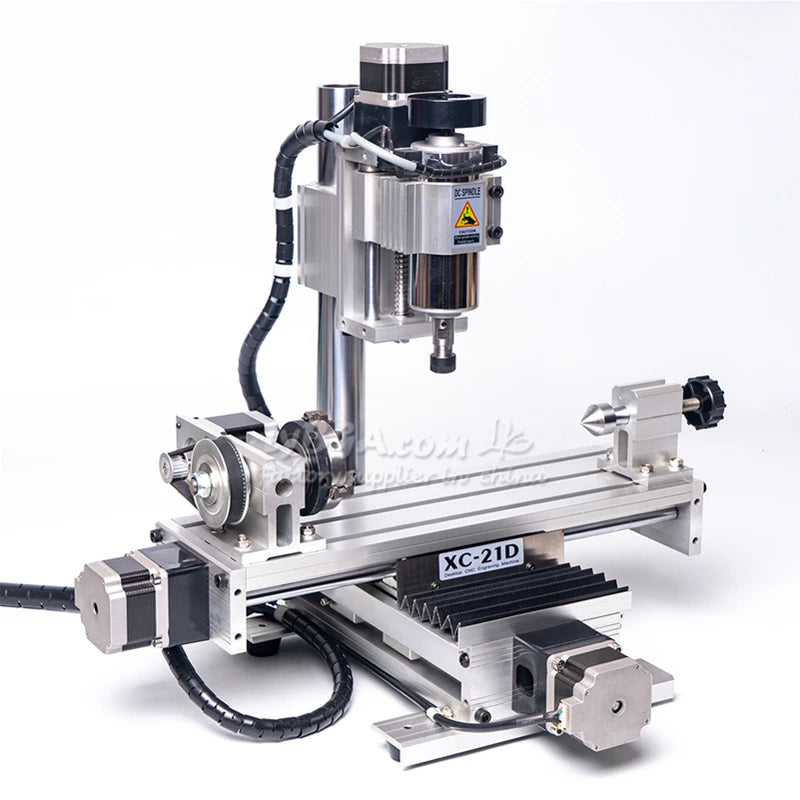

Note: The 4th axis (rotary attachment) is optional and sold as part of the 4-axis model.

Machine Specifications

 Engraving Area: 230mm x 120mm

Z-Axis Stroke: 60mm

Acceptable Material Thickness: Up to 240mm

Machine Dimensions: 480mm x 420mm x 475~590mm

Spindle Motor: 300W DC (3000~11000 RPM)

Speed Range: 100–3000 mm/min

Repeatability: 0.05mm

Input Voltage: 110V or 220V AC

Ready to Level Up Your Craft

Whether you're building circuit boards, sculpting jewelry molds, cutting signs, or carving intricate 3D pieces, the LY CNC Machine brings your ideas to life with flawless accuracy and reliable speed.

Get yours today and experience next-level precision milling.
