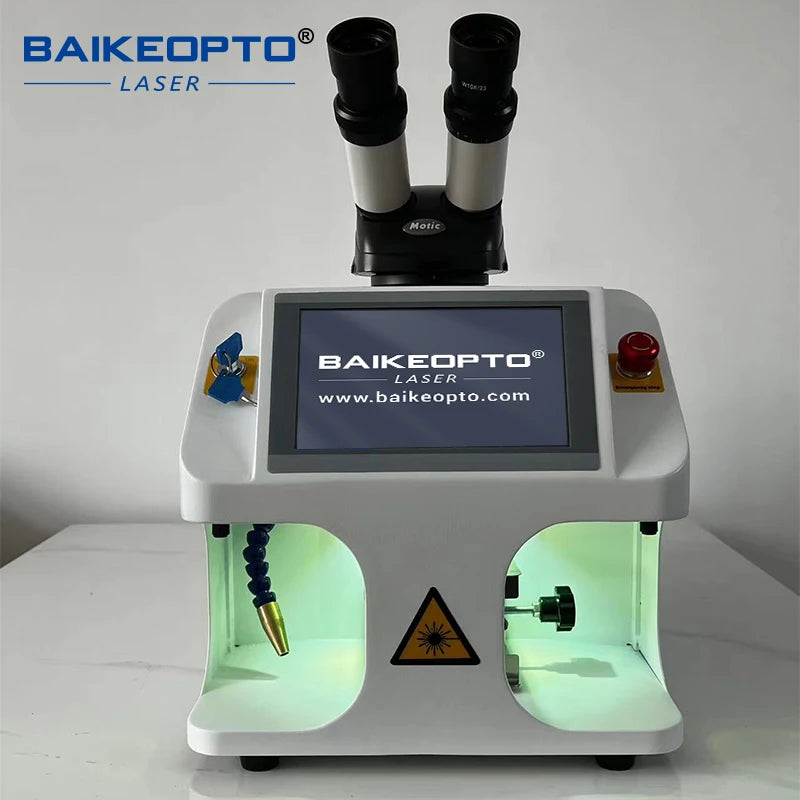

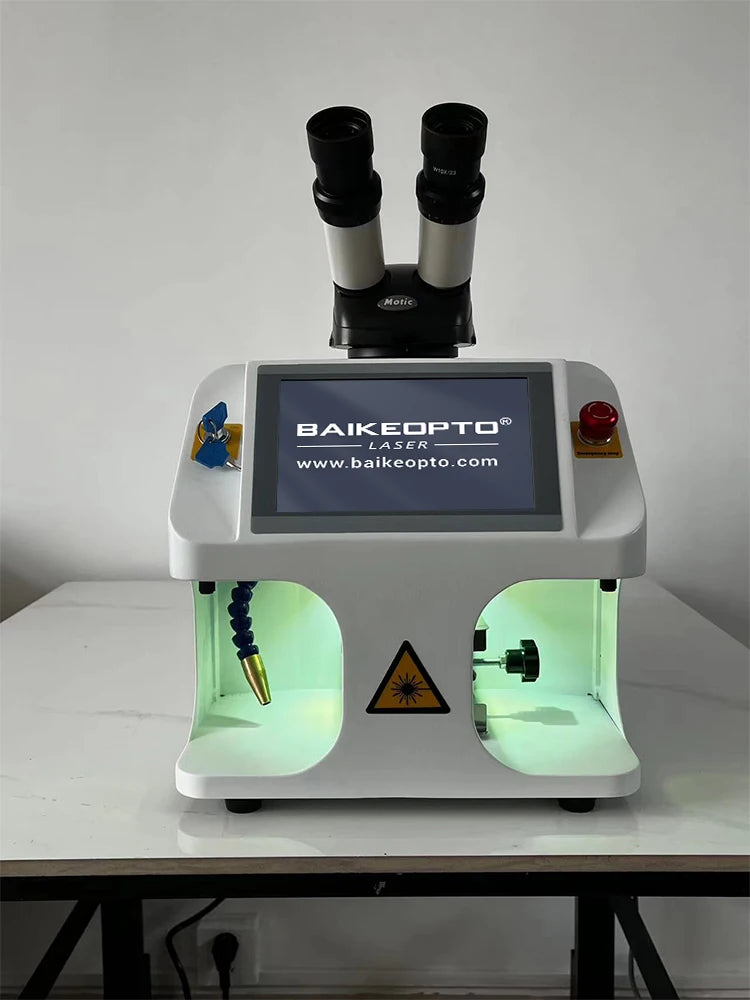

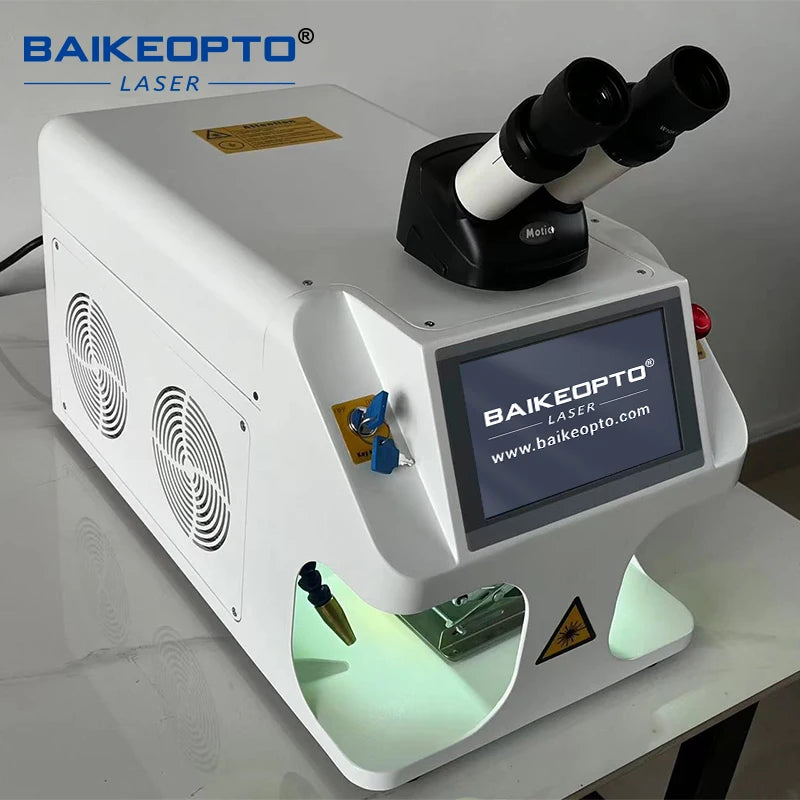

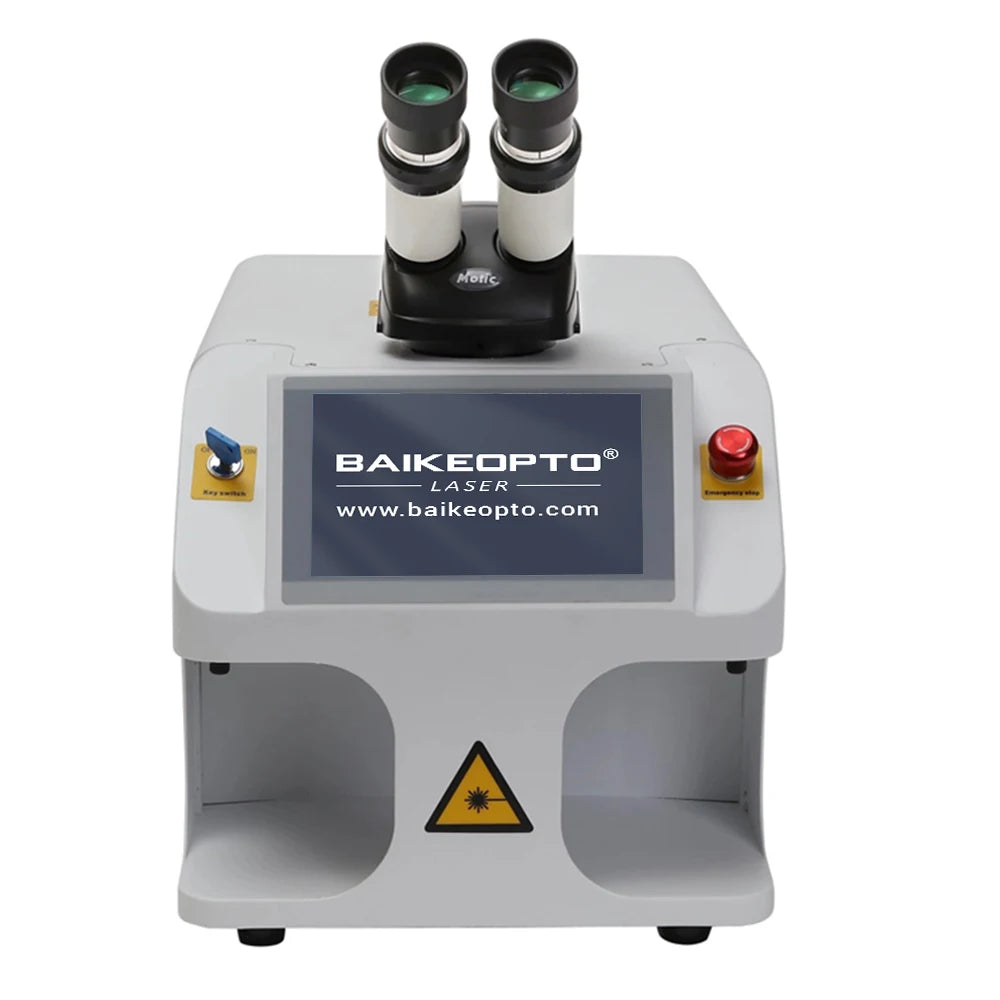

Jewellery Laser Welding Machine for Gold and Silver

This jewelry laser welder combines smart controls, dual-view observation, and reliable air cooling into one sleek, lightweight unit. It’s built to handle daily tasks with speed, clarity, and accuracy, even on micro-jobs.

Key Features & Benefits

Compact & Portable
Weighs just 28kg, saving you shipping costs and precious workspace without sacrificing performance.

Precision Welding with CCD & Microscope View
See every detail with dual observation perfect for repairing micro-jewelry, jump rings, claws, and prongs.

Custom Power Options
Choose from 60W, 100W, 150W, or 200W to match your workload and metal type.

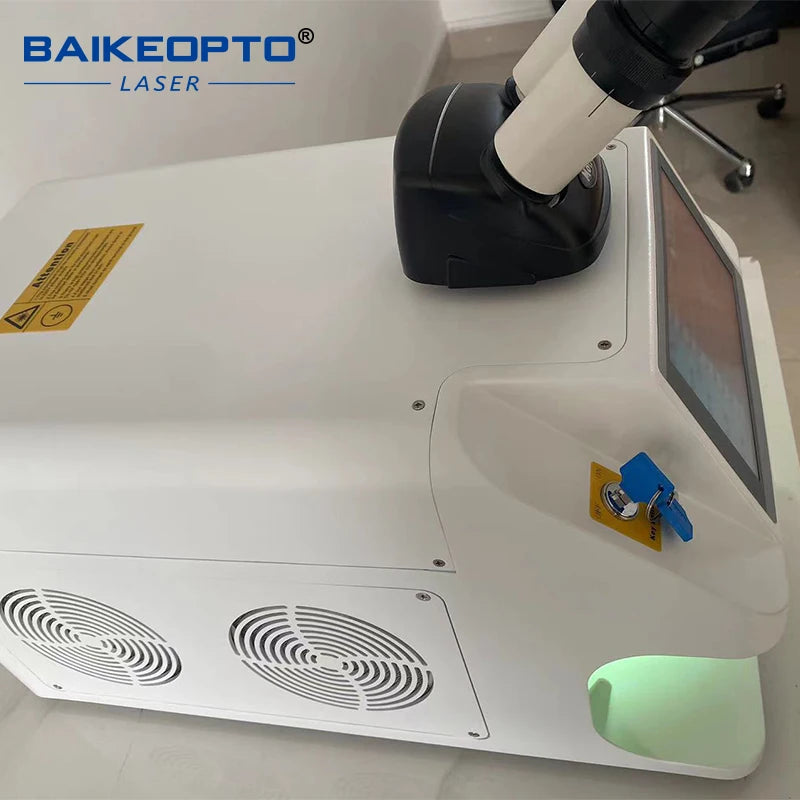

Fast Cooling System
Built-in air-cooled double-cycle system keeps the machine steady without bulky water chillers.

Energy Efficient
Uses 10 to 50% less power than similar models, thanks to a smart electro-optic design and patented cavity system.

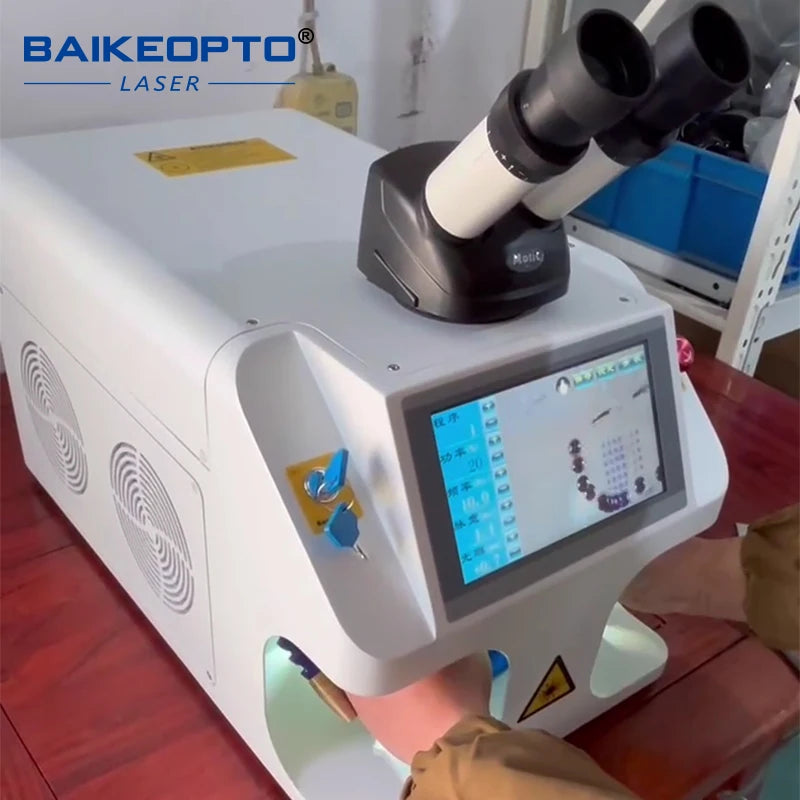

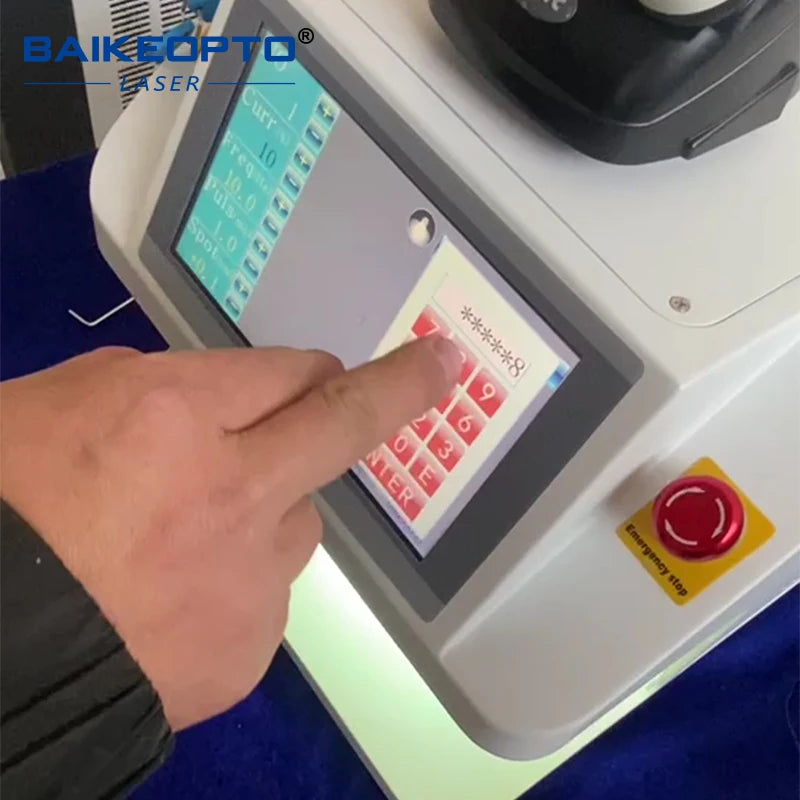

Intelligent Operation Panel
Multi-language touch interface with auto wind control, fault detection, and real-time monitoring. Learn it in 5 minutes.

Made to Last
Built with durable components including an imported xenon lamp, Eastwave crystal, and a sturdy metal housing.

What’s in the Box

1 x Jewelry YAG Laser Welding Machine (choose 100W, 150W, or 200W)

Built-in Microscope and CCD Camera System

Air-cooled Circulation System

Xenon Lamp Installed

Power Cable and Accessories

User Manual (English)

Quick Start Guide and Tools

Technical Specifications

Voltage: AC220V ±5%, 50Hz

Output Power: 100W / 150W / 200W

Pulse Width: 0.1–10ms

Max Pulse Energy: 50J / 80J / 100J

Frequency Range: 1–15Hz

Wavelength: 1064nm

Machine Size: 510 x 295 x 420mm

Net Weight: 28kg

Power Consumption: ≤2KW

Operating Temp: ≤30°C
