Smart Electric Tapping Arm (M3–M16) with Touch Control & Servo Motor Power

The Electric Tapping Arm M3–M16 brings industrial precision and intelligent performance straight to your workspace. Designed with a high-speed servo motor, touch screen control, and universal work angles, it simplifies threading operations like never before.

Key Features & Benefits

Versatile Tap Range (M3–M16)
Covers a wide range of threading jobs, from delicate components to heavy-duty fittings.

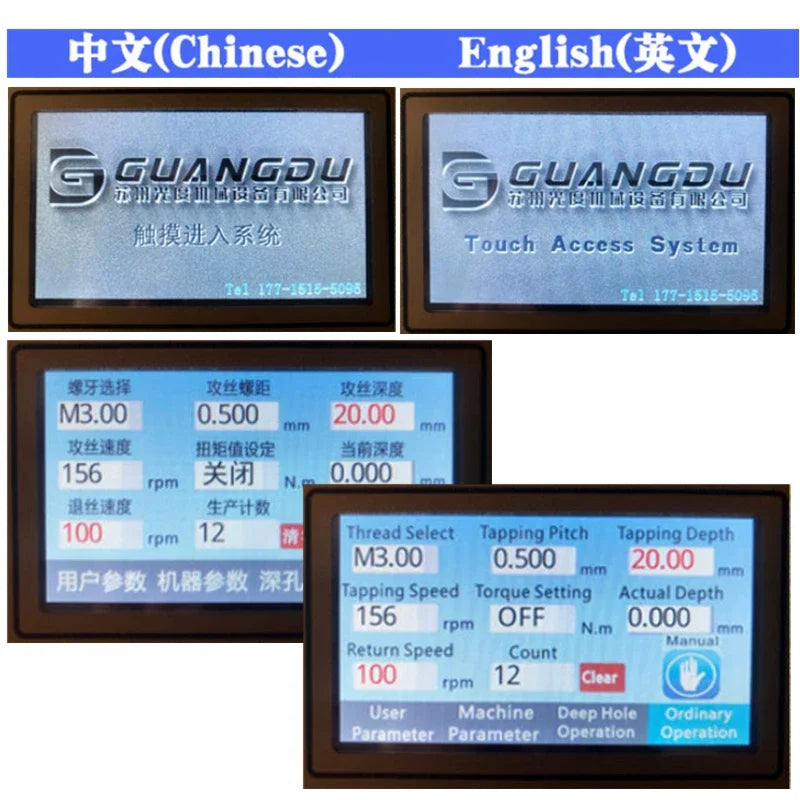

Touchscreen Controller
Instantly adjust speed, depth, and mode with an intuitive interface.

Servo Motor Performance
Enjoy smooth, consistent power with a high-speed motor capable of up to 5000 RPM.

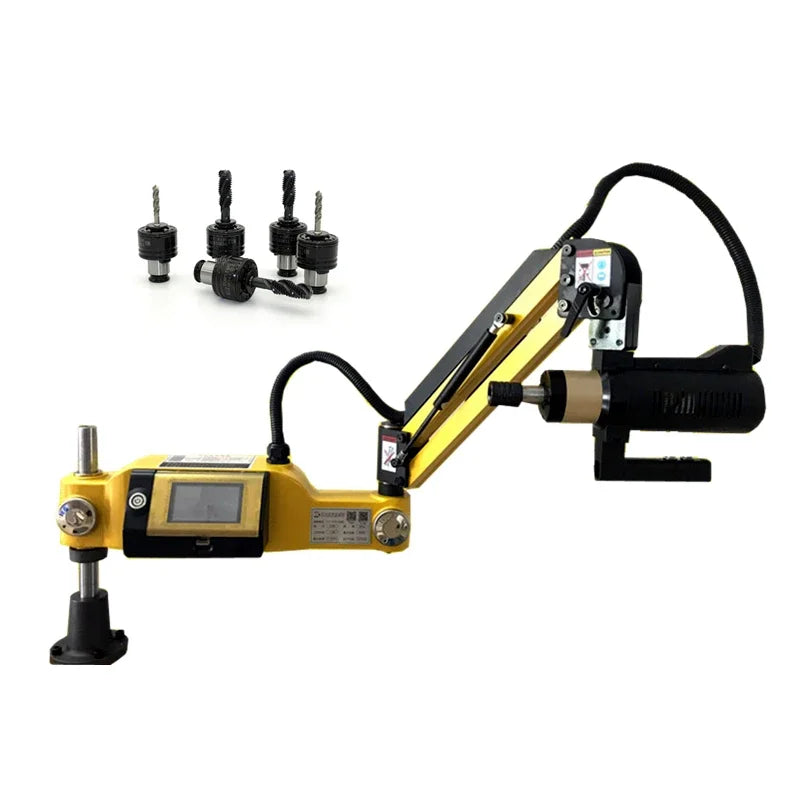

Adjustable Working Angle
Available in vertical or universal models for hard-to-reach angles or multi-axis work.

Precision Ball Screw Design
Accurate and backlash-free movement ensures perfect threading every time.

Overload Protection
Built-in clutch and torque protection to prevent tool damage during high-pressure use.

Ultra Quiet & Low Maintenance
Operates under 60dB with a wear-resistant planetary reducer and sealed grease system.

Flexible Mounting & Power Supply
Compatible with 110V and 220V, no special wiring needed.

What’s in the Box

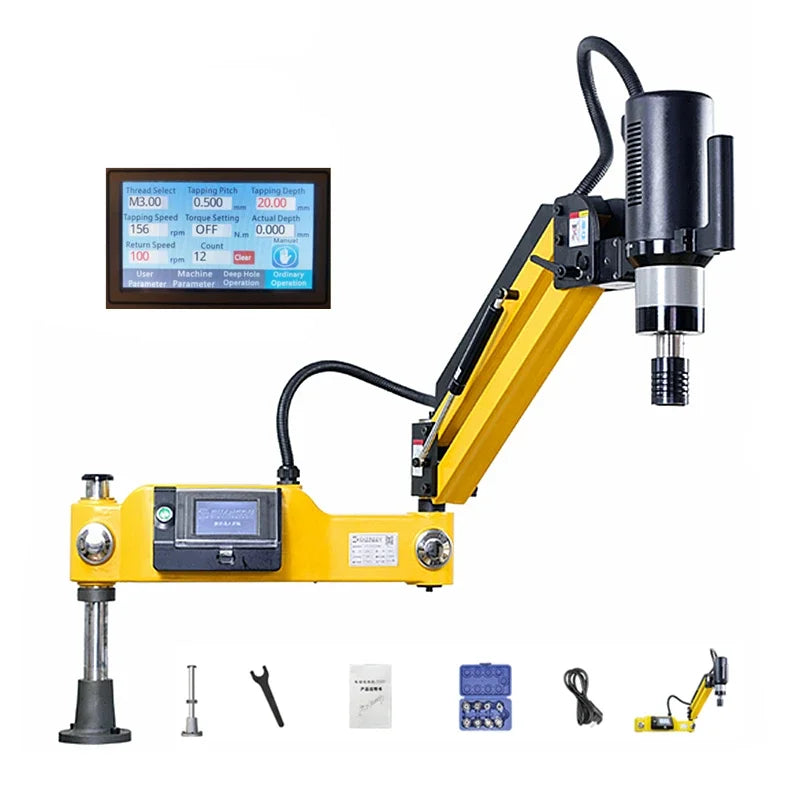

1 × Electric Tapping Arm (M3–M16 Vertical or Universal)

1 × Touchscreen Controller

1 × Torque Chuck (M3–M16)

1 × Detachable Ergonomic Handle

1 × Power Cable

User Manual and Setup Guide

Note: Base mounting table is not included due to weight and shipping limitations.

Machine Specifications

Voltage: 220V (compatible with 110V if selected)

Motor Power: 600W

Electric Current: 50Hz / 60Hz

Spindle Speed: 0–312 RPM

Tap Capacity: M3–M16

Working Radius: 1100mm

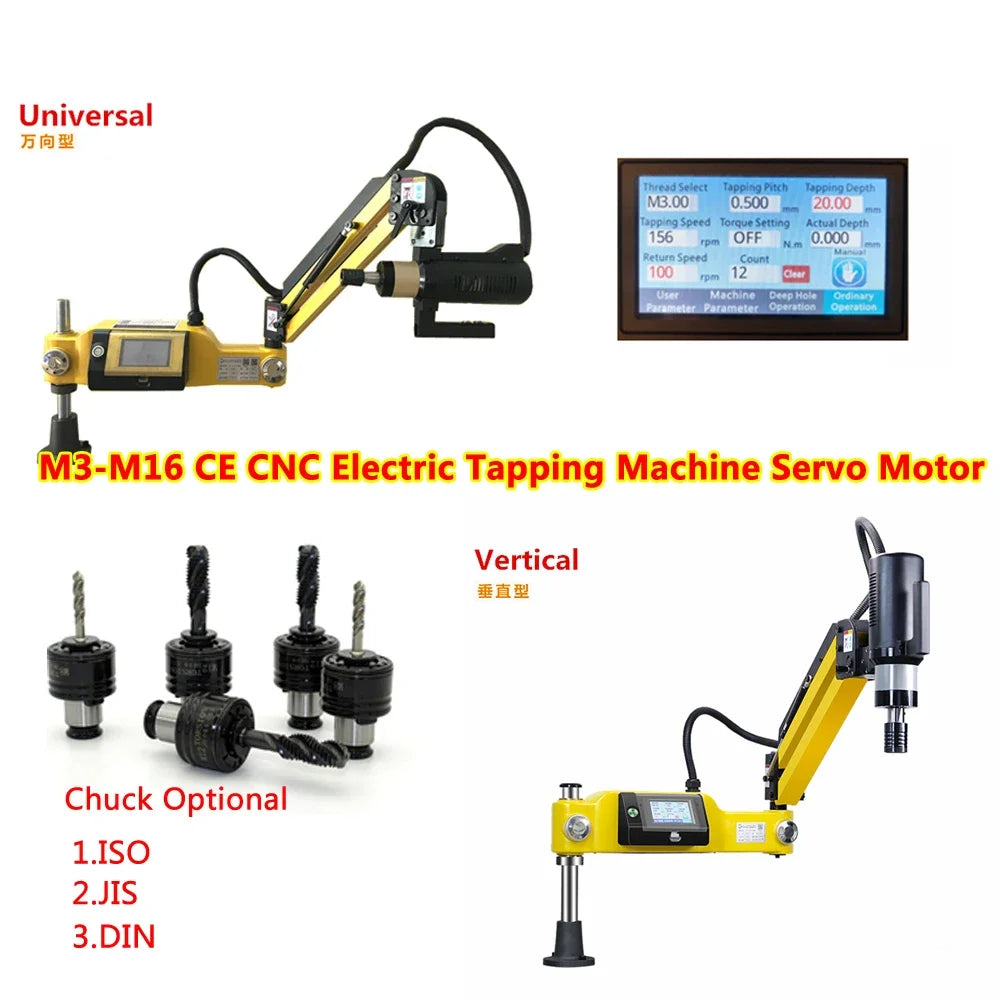

Working Angle: Vertical or Universal Type

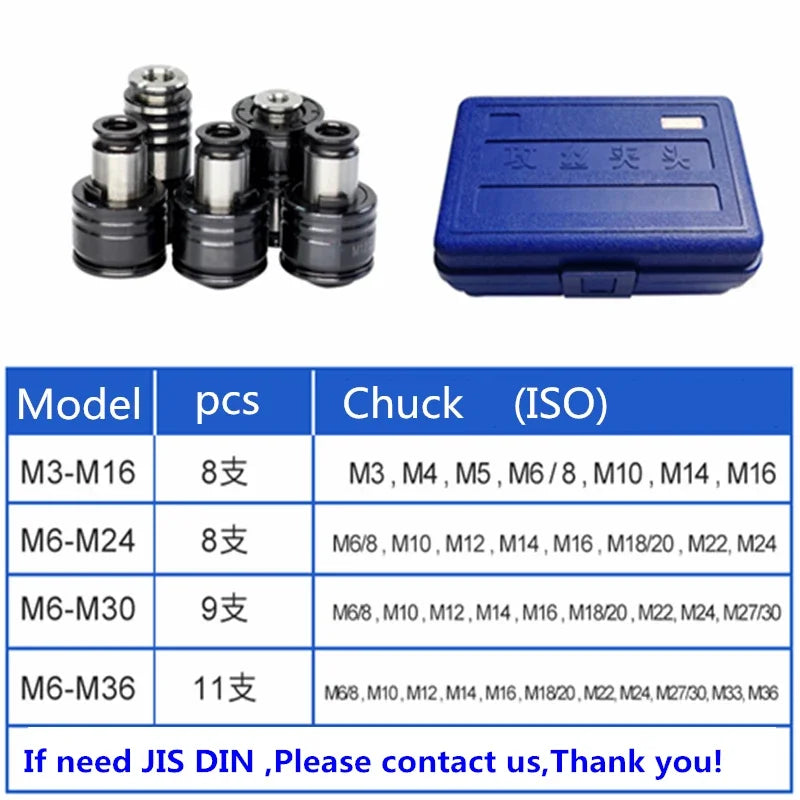

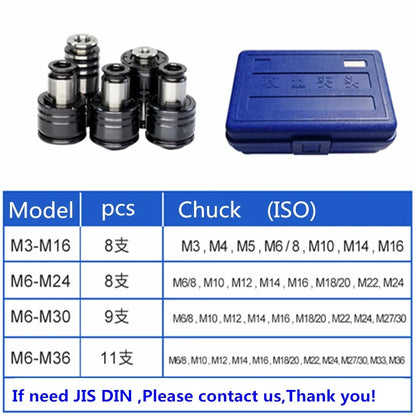

Chuck Type: M3 M4 M5 M6/8 M10 M12 M14 M16

Control Panel: Full Touchscreen

Weight: 28kg

Packing Size: 65cm × 61cm × 22cm
